Stelligent CloudFormation Templates

Select the foundational pieces for building out an infrastructure from the ground up.

Create Details

1. VPC


2. Nat Gateway (Optional)


3. Bastion Host (Optinoal)


4. VPN (Optional)

Public S3 URL

https://s3.amazonaws.com/stelligent-public/cloudformation-templates/github/infrastructure.yml

Creates an entire VPC from scratch for Lab or Permanent.

Create Details

1. Single VPC


2. 3 Public Subnets


3. 3 Private Subnets


4. Public Route Table


5. Private Route Table


6. Internet Gateway




• Attached to the Public Route Table




7. Public Network ACL


8. Private Network ACL


9. VPC Endpoint


10. Instance Access Security Group




• Instance to Instance Access




11. Remote Access Security Group




• This can be used for to allow site-to-site VPN or Direct Connect Networks access to instances.

Public S3 URL

https://s3.amazonaws.com/stelligent-public/cloudformation-templates/github/vpc.yml

Creates a NAT Gateway on an existing VPC with Public (IGW) and Private subnets. Private route table is updated to route traffic to the NAT gateway a Public subnet that has an Internet Gateway Attached.

Prerequisites

1. VPC




• Public Subnet, IGW, Private Subnet/s.


• Either use an existing VPC Infrastructure or you can use the following VPC Template to create a one.




2. AWS Privileges

Create Details

1. NAT Gateway


2. EIP


3. Add Route to Private Route Table

Advantages over NAT Instance

1. Redundancy built in.


2. Easier setup and management.

Public S3 URL

https://s3.amazonaws.com/stelligent-public/cloudformation-templates/github/nat-gateway.yml

Creates a Site-to-Site BGP VPN Connection in and existing VPC with public and/or private networks.
There is an option to not exclude allowing VPN access to the public networks.
Simply select false for the ‘Include Public Subnets’, leave default value in Public Network ACL and Route Table.
The values will just be ignored. This only sets up the AWS side of the VPN.
After the CloudFormation creates the objects you’ll then need to configure your remote VPN Device.
Here’s an article that gives the configuration steps for configuring a Sophos UTM v9 VPN endpoint.
This assumes that the Private Network ACL allows all outbound. Lastly, the Private Network ACL inbound is updated to allow the remote network block specified.

Prerequisites

1. VPC




• Public Subnet, IGW, Private Subnet/s.


• Either use an existing VPC Infrastructure or you can use the following VPC Template to create a one.




2. Remote Network (Office) VPN Device WAN IP


3. Remote Network CIDR Block to Allow Access and Propagate.

Create Details

1. Customer Gateway


2. Virtual Private Gateway


3. VPN Connection


4. Enable Route Propagation on Route Table/s


5. Add Network ACL to Allow Remote Network

Public S3 URL

https://s3.amazonaws.com/stelligent-public/cloudformation-templates/github/vpn-bgp.yml

Creates a single Bastion host on a Public subnet in an existing VPC. Select from either a RHEL, Ubuntu or Windows OS.

Prerequisites

1. VPC




• Public Subnet, IGW, Private Subnet/s.


• Either use an existing VPC Infrastructure or you can use the following VPC Template to create a one.




2. Available EIP

Create Details

1. EC2 Instance


2. EIP


3. IAM Role


4. IAM Instance Profile


5. Security Group

Public S3 URL

https://s3.amazonaws.com/stelligent-public/cloudformation-templates/github/bastion.yml

Create EC2 Single Proxy Instance

Prerequisites

1. VPC


2. 1 Public Subnet

CloudFormation Tasks

1. Create Single EC2 Instance on Public Network with Public IP


2. Create Autoscaling Group of 1 for DR


3. Create Proxy Access Security Group


4. Install Chef Client


5. Create Chef Configurations Files (environment, roles, etc.)


6. Download Cookbooks from Github Repo


7. Checkout Specific Version of Cookbook


8. Run Chef Client using Chef Zero


9. Warm EBS Volume

Chef Cookbook Tasks

1. Install, Configure and Start Squid Proxy


2. Setup CloudWatch Logs


3. Create Route53 DNS Update Script


4. Configure DNS Update Cron Job

Public S3 URL

https://s3.amazonaws.com/stelligent-public/cloudformation-templates/github/proxy-awsapi-devops-access.yml

Creates an Elastic File System with 3 Mounts

Prerequisites

1. VPC


2. 3 Subnets

Create Details

1. EFS Filesystem


2. 3 Mount Targets

Public S3 URL

https://s3.amazonaws.com/stelligent-public/cloudformation-templates/github/efs.yml

Create S3 Backup Bucket

Prerequisites

1. VPC


2. VPC Endpoint

Create Details

1. Single S3 Bucket


2. Enabled Versioning


3. Enforced Encryption


4. Creates LifeCycle to Delete Previous Versions after X Days

Public S3 URL

https://s3.amazonaws.com/stelligent-public/cloudformation-templates/github/s3-backup-bucket-delete-previous.yml

Creates a MySQL RDS Database Instance.

Prerequisites

1. VPC




• Public Subnet, IGW, Private Subnet/s.


• Either use an existing VPC Infrastructure or you can use the following VPC Template to create a one.

Create Details

1. DB Instance


2. DB Subnet Group


3. Security Group


4. Cloud Watch Alarms


5. Route 53 Record Set (Optional)

Public S3 URL

https://s3.amazonaws.com/stelligent-public/cloudformation-templates/github/mysql-rds.yml

Creates an RDS Instance From Snapshot. Can be great for Blue/Green or pull Prd DB to Nonprod for testing.

Prerequisites

1. RDS Snapshot in Same Region


2. 2+ Subnets if Enabling Multi AZ

Create Details

1. Create RDS Instance from Snapshot


2. Create Subnet Group


3. Create Access Security Group


4. Optionally Configure DNS Record in Route53

Notes

1. Because it’s a restore several options are not available. Such as:




1. Can’t set Master User and Password


2. Can’t select what DB Engine


3. Can’t set allocated storage

Public S3 URL

https://s3.amazonaws.com/stelligent-public/cloudformation-templates/github/create-rds-from-snapshot.yml

Create an Autoscaling group in 3 private subnets from a baked AMI, an Elastic Load Balancer in 3 public subnets and S3 ELB Logging Bucket.
Option to use SSL/TLS on ELB. Option to update Route 53 Hosted DNS alias to point to the ELB.
Setup to add RDS Access Security Group. Does not create an RDS Instance. Use an RDS Instance Cloudformation Template first.

Create Details

1. EC2 Instances


2. AutoScaling


3. Launch Configuration


4. Elastic Load Balancer


5. IAM Role


6. IAM Instance Profile


7. Security Group


8. Scale Up Policy


9. Scale Down Policy


10. Cloud Watch Alarm


11. Network ACL Entry


12. Route 53 Record Set (Optional)


13. S3 Bucket (Optional)


14. S3 Bucket Policy (Optional)

Public S3 URL

https://s3.amazonaws.com/stelligent-public/cloudformation-templates/github/autoscaling-bakedami-rdsbackend.yml

Automates the integration between AWS Lambda and CodePipeline

Prerequisites

1. N/A

Supported Regions

1. us-east-1

Create Details

1. IAM Policy and Roles


2. Lambda Function


3. CodePipeline

Creates a Bitbucket Server in a private or public subnet in an existing VPC.

Prerequisites

1. VPC




• Public or Private Subnet


• Internal Instance Access Security Group


• Either use an existing VPC Infrastructure or you can use the following VPC Template to create a one.




2. Internet Access from the EC2 Instance or Yum access solution


3. EC2 Key Pair


4. Available EIP if Selected Public Facing


5. IAM Role Creation Permissions

Supported Regions

1. cn-north-1


2. us-east-1


3. us-west-1


4. us-west-2


5. eu-west-1


6. eu-central-1


7. ap-northeast-1


8. ap-northeast-2


9. ap-southeast-1


10. ap-southeast-2


11. sa-east-1

Create Details

1. EC2 Instance (Amazon Linux)


2. EIP (Optional)


3. IAM Role


4. IAM Instance Profile


5. Security Group

Public S3 URL

https://s3.amazonaws.com/stelligent-public/cloudformation-templates/github/bitbucket.yml

Creates a Chef Complianc Web server in a Public Subnet with Internet Gatewayy attached on an existing VPC.
It then attaches an EIP and finally adds the instance to an existing instance-to-instance security group.

Prerequisites

1. VPC




• Public Subnet, IGW, Private Subnet/s.


• Either use an existing VPC Infrastructure or you can use the following VPC Template to create a one.




2. Available EIP

Supported Regions

1. us-west-2


2. us-east-1

Create Details

1. EC2 Instance


2. EIP


3. IAM Role


4. IAM Instance Profile


5. Security Group

Public S3 URL

https://s3.amazonaws.com/stelligent-public/cloudformation-templates/github/chef-compliance.yml

Automates the integration between AWS CodeBuild, CodeCommit, CodeDeploy, and CodePipeline

Prerequisites

1. EC2 Key Pair

Supported Regions

1. us-east-1

Create Details

1. IAM Roles


2. EC2 instance (for CodeDeploy)


3. CodeCommit


4. CodeDeploy


5. CodePipeline

Automates the integration between AWS CodeCommit and CodePipeline

Prerequisites

1. EC2 Key Pair


2. CodeCommit Repo

Supported Regions

1. us-east-1

Create Details

1. IAM InstanceProfile, Policy, and Roles


2. EC2 Instance for CodeDeploy


3. CodeDeploy


4. CodePipeline with CodeCommit Integration

Adds a Manual Approval to a CodePipeline

Prerequisites

1. CodeCommit Repository

Supported Regions

1. us-east-1

Create Details

1. IAM Policy and Roles


2. AWS Lambda Function


3. SNS


4. CodePipeline

Containerized CI Solutions in AWS: Jenkins in ECS

Prerequisites

1. EC2 Key Pair

Supported Regions

1. us-east-1

Create Details

1. VPC and associated resources


2. IAM


3. EFS


4. EC2 Instances


5. Auto Scaling


6. ELB


7. ECS Service, Cluster, Task Definition

Automates the integration between EC2 Container Service (ECS), EC2 Container Registry (ECR), CodeCommit, and CodePipeline

Prerequisites

1. EC2 Key Pair


2. Existing Docker Image


3. CodeCommit Repository


4. ECR Repository

Supported Regions

1. us-east-1

Create Details

1. Virtual Private Cloud (VPC) (and associated resources)


2. Auto Scaling Group, Auto Scaling Launch Configuration


3. ECS Cluster, ECS Service, ECS Task Definition


4. Elastic Load Balancer


5. IAM Instance Profile, IAM Roles


6. EC2 Instance (Jenkins, Docker)


7. CodePipeline with CodeCommit Integration

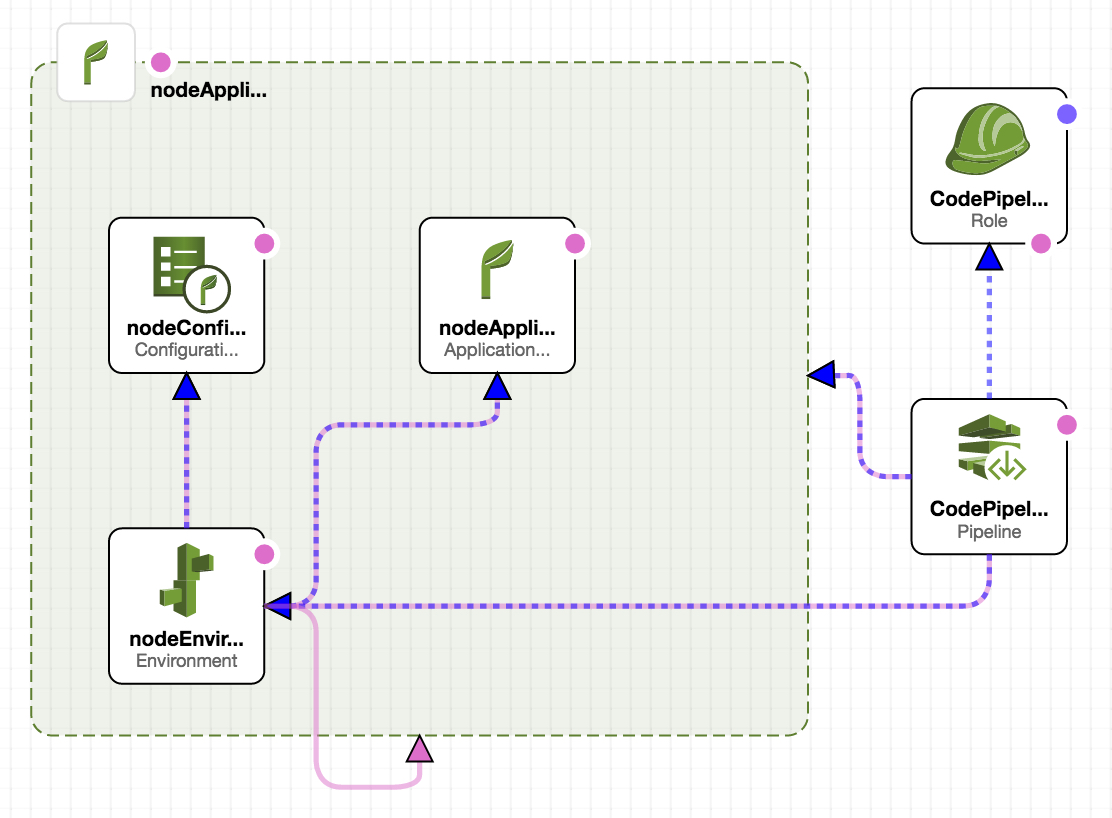

Automates the integration between AWS Elastic Beanstalk and CodePipeline

Prerequisites

1. CodeCommit Repo

Supported Regions

1. us-east-1

Create Details

1. IAM InstanceProfile, Policy, and Roles


2. Elastic Beanstalk - ConfigurationTemplate, Environment


3. CodePipeline with CodeCommit Integration

Create S3 Backup Bucket

Prerequisites

1. VPC


2. Public Subnet


3. Internal Access Security Group


4. RDS Security Group


5. EFS Security Group

Create Details

1. Single Amazon Linux EC2 Instance


2. Create Web Access Security Group


3. Create IAM Instance Profile Role


4. Create CloudWatch Logs Group


5. No External IP

Deploy Details

1. Installs Nginx


2. Installs PHP-FPM 7.0


3. Installs MySQL 5.6 Client


4. Installs Specfic Release of Mediawiki (Default REL1_28)


5. Installs Creates Nginx Config for Mediawiki


6. Assumes RDS Backend


7. Assumes EFS Shared Content Mount

Creates a deployment pipeline in AWS CodePipeline using a pre-built Lambda function. It can be used to model a pipeline without initial implementation

Prerequisites

1. AWS Account

Supported Regions

1. us-east-1

Create Details

1. Amazon S3 bucket for CodePipeline artifacts


2. AWS SNS Topic


3. AWS IAM Policy and Roles


4. AWS Lambda Function


5. AWS CodePipeline Stages and Actions

Automates the integration between AWS OpsWorks, CodeCommit and CodePipeline

Prerequisites

1. EC2 Key Pair

Supported Regions

1. us-east-1

Create Details

1. IAM InstanceProfile, Policy, and Roles


2. SecurityGroupIngress and SecurityGroup


3. OpsWorks Stack, Layer, App and Instance


4. CodePipeline

Creates an S3 bucket to host a single-page application and a continuous delivery pipeline with CodeBuild and CodePipeline.

Prerequisites

1. GitHub token (with access to repo and admin:repo_hook)


Supported Regions

1. us-east-1


2. us-west-2

Create Details

1. IAM Role for CodePipeline


2. IAM Role for CodeBuild


3. S3 Bucket


4. CodeBuild Project


5. CodePipeline Project

Creates three test instances in an existing VPC. Each instance is a different operating system. They are; Red Hat Enterprise Linux 7, Ubuntu 14 and Windows 2012 R2.

Create Details

1. 3 EC2 Instances


2. IAM Role


3. IAM Instance Profile

Public S3 URL

https://s3.amazonaws.com/stelligent-public/cloudformation-templates/github/rhel-ubuntu-win2012.yml

Create S3 Backup Bucket

Prerequisites

1. VPC


2. Public Subnet


3. Internal Access Security Group


4. RDS Security Group


5. EFS Security Group

Create Details

1. Single Amazon Linux EC2 Instance


2. Create Web Access Security Group


3. Create IAM Instance Profile Role


4. Create CloudWatch Logs Group


5. No External IP

Deploy Details

1. Installs Nginx


2. Installs PHP-FPM 7.0


3. Installs MySQL 5.6 Client


4. Installs Latest Wordpress


5. Installs Creates Nginx Config for Wordpress


6. Assumes RDS Backend


7. Assumes EFS Shared Content Mount
