arduino-raspi-lora

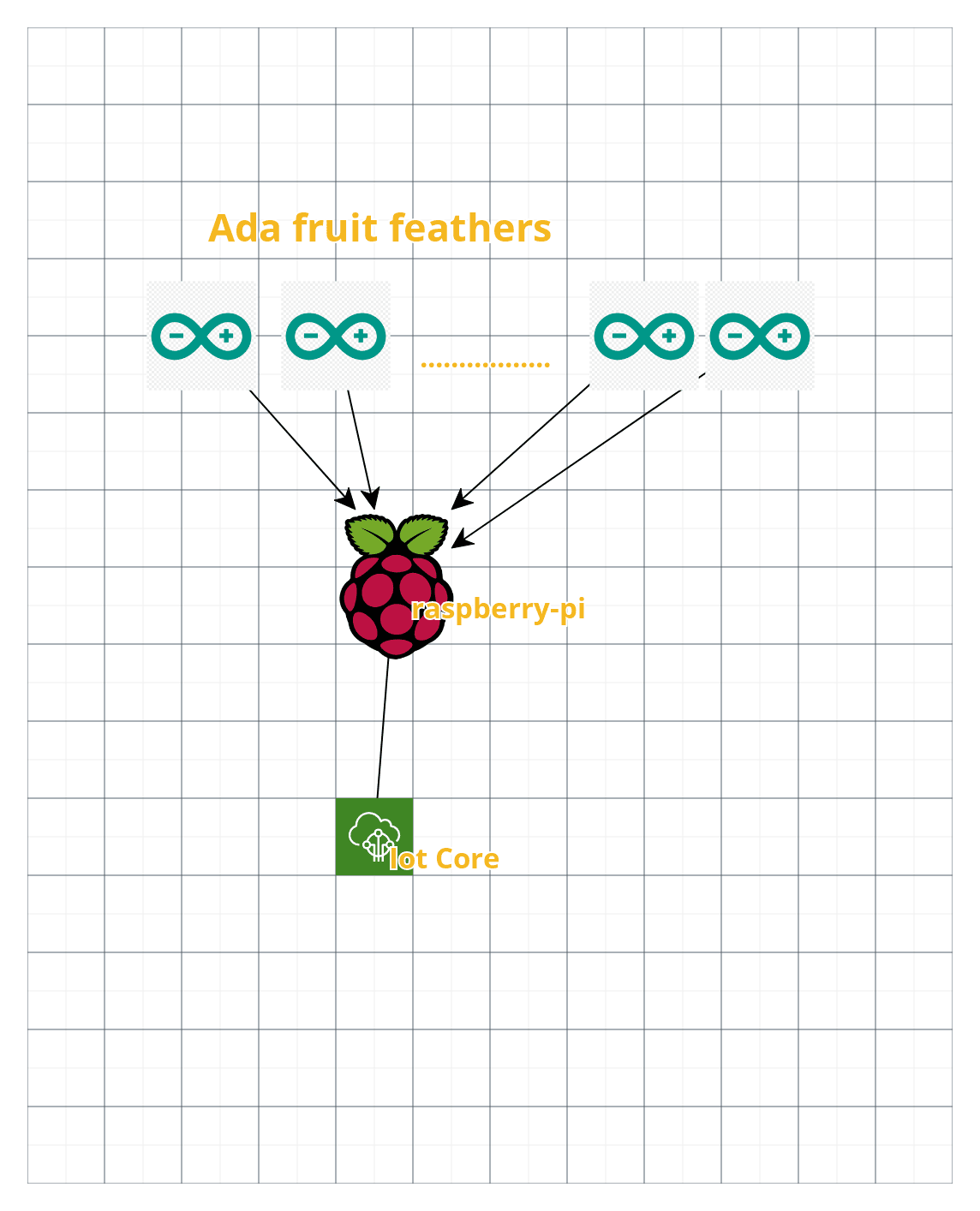

building a long range system to analyze measurement without internet connection.
with LoRa connection we can transfer data from all the feather’s sensors to the raspberry-pi.
the raspberry pi build as a thread per task server.


Explore the docs »




View Demo
·
Report Bug
·
Request Feature

Table of Contents

• About the Project
  • Built With
• Getting Started
  • Connections
  • Prerequisites
    • Raspberry pi
    • Feather
  • Installation
    • Raspberry pi
    • Feather
• Contact

About The Project

Components

• Raspberry-pi
• Adafruit RFM69HCW Transceiver Radio Breakout
• Adafruit RFM69HCW Transceiver Radio Bonnet - 868 or 915 MHz - RadioFruit

Getting Started

To get a local copy up and running follow these simple steps.

Connections

Prerequisites

Raspberry pi

• enable SPI using sudo raspi-config>Interfacing Options>SPI

  Feather

• arduino IDE

Installation

Raspberry pi

1. Clone the repo
   ```sh
   git clone https://github.com/CiTRuS93/arduino-raspi-lora.git

2.
```sh
cd raspberry-pi
  pip install -r requirements.txt

feather

• install LowPowerLab RFM69 from arduino IDE
• mount feather_lora.ino

Contact

Project Link: https://github.com/CiTRuS93/arduino-raspi-lora
